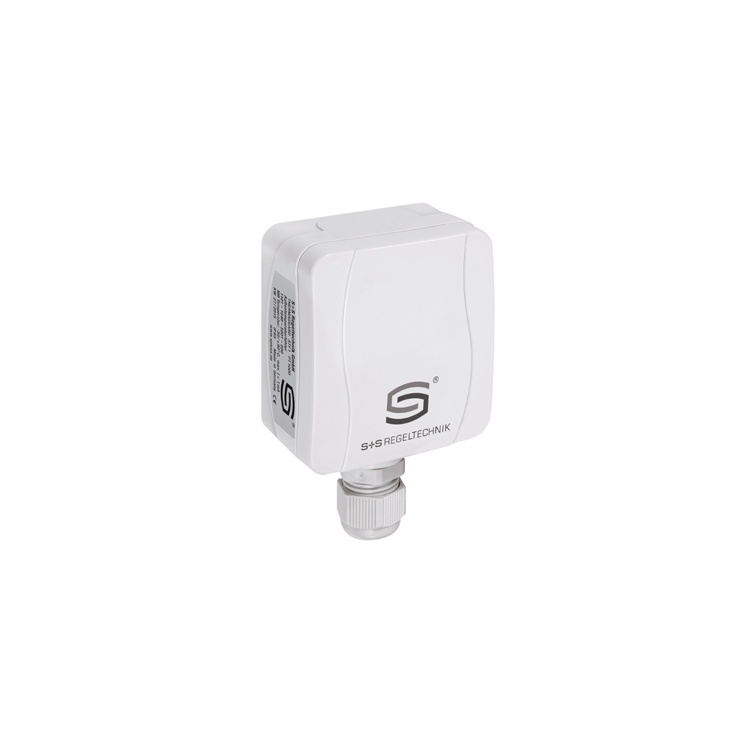

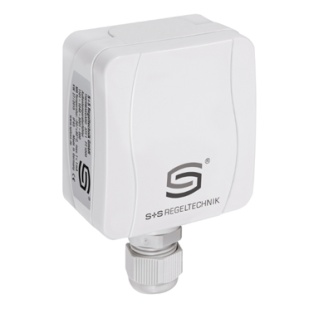

Outside temperature sensor ATF01-PT100, -50..+90°C, box 72x64x38 M16x1.5, IP43
S+S Regeltechnik

Outside wall resistance thermometer ⁄ weather sensor THERMASGARD® ATF 1 (Internal sensor) with passive output, with enclosure made of impact-resistant plastic and quick-locking screws.

Outside wall resistance thermometer ⁄ weather sensor THERMASGARD® ATF 01 (Internal sensor) with passive output, with enclosure made of impact-resistant plastic and snap-on lid.

It is used to measure outside temperatures, temperatures in wet rooms e.g. as an outdoor sensor, weather sensor for installation on outside walls, in cold storage buildings and greenhouses, in halls, in the industrial sector and in agriculture. In outdoor areas, the temperature sensor is installed preferably at the north side of a building or in a protected place. In case of direct solar radiation, the sunshade protector WS 01 should be used.

Technical data:
Sensor: PT100;
Sensor-tolerance: ±0.3 % at 0 °C according to DIN EN 60751;
Operation range, temperature: -50... 70 °C;
Operation range, humidity: <95% r.H., non-precipitating air
Storage temperature: -50... 70 °C;
Enclosure: Polyamide, 30% glass-globe reinforced, with snap-on lid, traffic white (similar to RAL 9016);
Enclosure dimensions: 72 x 64 x 37.8 mm (Tyr 01).
Weight: 0.112 kg/tk.

Manufacturer: S+S Refeltechnik GmbH.
Official representative: Joy of Life OÜ, www.joyoflife.ee
