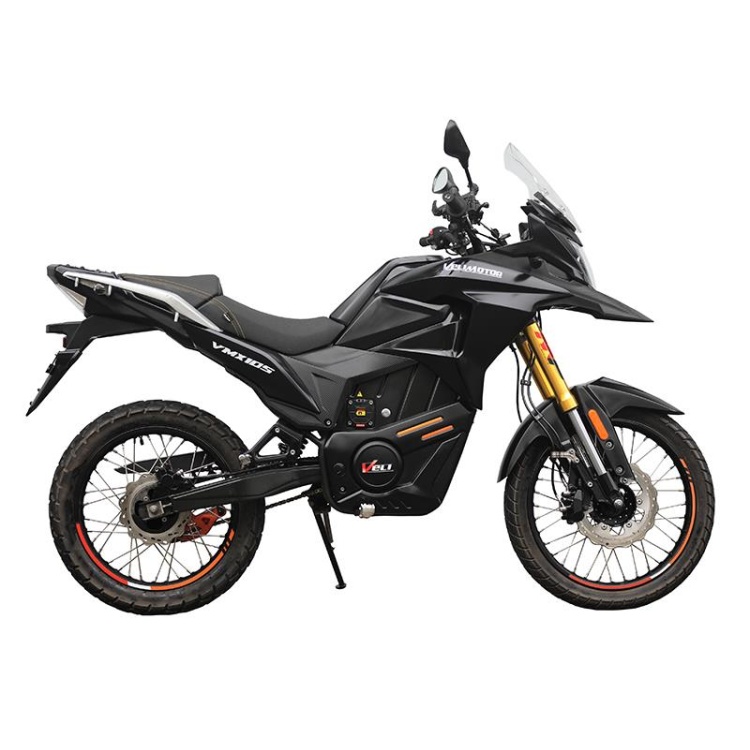

Electrical motorcycle VMX10S with peak power 12kw motor
With type2 charger port and CAN communicatio
Motor Type: 72V Brushless DC permanent magnet motor.
Maximum Power: 12KW(Rate: 4KW)/18KW(rate 6KW).
Maximum power: 350N.m/500N.m.
Transmission ratio: 2.2:1 with brake Energy Regeneration.
Controller: 2023 new intelligent vector sine wave.
Maximum Speed: 115km/h/125km/h.
Maximum load: 150KG.
Battery Capacity:72V58AH removable lithium battery (A-class cells, more than 1500cycles) (battery:21.9kg).
Charger: on board 12A or 22A.
Charging time: 3-5 hours.
Maximum Endurance range: 150km.
Gradeability: 35°.
Brake with CBS:front: disc brake, rear: disc brake.
Driving: 520 chain drive.
Shift: Stepless speed change(CVT).
Tire size: 90/90-19 (front)4.60-18 (rear).
G.Weight: 125kg.
Start: key start.
Speedometer: LCD digital.
Headlight: LED.
Front shock absorption: upside down shock absorbers Rear suspension: adjustable shock absorbers.
Size: 2180×860×1180.
Seat height: 880mm.
Minimum ground clearance: 340mm
Wheelbase: 1382mm.
Frame Material: steel pipe.
Shell Material: ABS plastics.
Charger: on board(AC220/AC110)
Other: protection bar.
Seat material: PVP leather.
Waterproof standard:IP54 for body, IP67 for electric system warranty: 2 years optional parts:
updated to peak power18KW motor;
updated to 22A on board charger;
A outside 12A outside charger;
A outside 22A outside charger.
3 alloy cases:
A rear alloy case;
A spare battery;
20ft container: 32 units/24 units;
40HQ container: 96 units /58 units.
Manufacturer: VeliTechnology Industrial Co., Ltd.
Official representative: Joy of Life OÜ, www.joyoflife.ee
